Fixed wing uavs

2 Meters

Short Range Surveillance Model U-2S

The U-2S Short Range Surveillance Drone is a compact and highly efficient unmanned aerial system designed for short-range intelligence, surveillance, and reconnaissance (ISR) missions. With a 2-meter wingspan and a lightweight aerodynamic structure, the U-2S ensures excellent stability, maneuverability, and ease of deployment in both urban and rural environments.

Powered by dual electric brushless motors and supported by a high-capacity 4-cell Lithium Polymer battery system, the U-2S delivers a mission endurance of up to 2.5 hours, covering distances of approximately 137 km (85 miles). Its cruise speed of 50–60 km/h allows for optimal data acquisition while maintaining energy efficiency, while a maximum speed of 80 km/h enables rapid response and repositioning when required.

3 Meters

Medium Range Surveillance Model U-3S

The U-3S Medium Range Surveillance Drone is a robust unmanned aerial platform designed for extended-range intelligence, surveillance, and reconnaissance (ISR) missions. Featuring a 3-meter wingspan and a reinforced airframe, it offers excellent aerodynamic efficiency and flight stability over long distances.

Powered by a 60 cc 4-stroke gasoline engine, the U-3S achieves a mission endurance of up to 5 hours, with an operational range of approximately 400 km (248 miles). Its cruise speed of 80–110 km/h ensures rapid area coverage, while a maximum speed of 130 km/h enables efficient response to dynamic mission requirements.

With a maximum take-off weight of 18 kg and a payload capacity of 4 kg, the U-3S can carry advanced surveillance systems, including EO/IR sensors and communication payloads. This platform is well suited for border surveillance, wide-area monitoring, and persistent situational awareness, providing a reliable and cost-effective solution for medium-range operations.

5 Meters

Tactical ISR-Model B-1C

A Multispectral Camera can be mounted under the fuselage or under the nose of the UAV. The Drop System can be added under the wings for twin charge to drop or under the fuselage for a single charge Additional Fuel Tanks to enlarge the autonomy and the range can be mounted under the wings
Drone type : Fixed Wing UAV
Tank Capacity : 9L -2.4 gal (7 kg -15.4 lbs fuel)
Max flight time : 8 Hours / 800 Km - 8 Hours / 497 miles
Max flight altitude : 4700 m - 15 420 feet
Generator Capacity : 2 x 350W or 1x700W

5 Meters

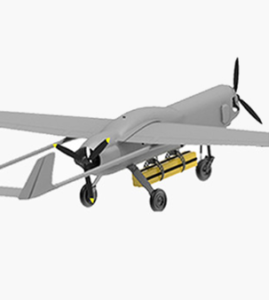

PHOENIX UAV Model B-1C

The PHOENIX B-1C thermal drone is a new-generation MALE (Medium Altitude Long Endurance) UAV that combines power, autonomy, and reliability. With a 5-meter wingspan, a compact fuselage, and an extremely low thermal and acoustic signature, it is the ideal solution for tactical missions involving surveillance, reconnaissance, and long-range target tracking. Its dual independent engine configuration ensures the necessary redundancy for long-duration and long-range missions, while maintaining the energy efficiency required for extended endurance operations. An optional anti-jamming system allows the drone to successfully complete its missions even in highly disturbed environments
Length : 3.36 m = 11 ft
Wing span : 4.74 m = 15.6 ft
Height : 0.80 m = 2.7 ft
Aircraft weight : 55 Kg = 121.3 lb
Max take-off weight : About 70 Kg = 154.3 lb
Max speed : 140 Km/h = 76 kt/h
Cruise Speed : 110 Km/h = 59 kt/h
Range : 800 Km = 497 nm
Duration : 8 hours
Service Ceilling : 4.700 m = 15.420 ft
Max payload : 13 Kg (Varies with Fuel load) = 28.6 lb
Dynamics : FM-85 Gasoline Engine x 2
Type : 4Cycle, Double cylinders, Electronic injection
Displacement : 2x 85cc
Max Output : 2x 4.8 KW (2x 6.6 HP)
Fuel : Mixed fuel of regular gasoline and oil
Generation Capacity : 2x 350 W (700 W) to 2x 500 W (1000 W)
Start system : 2x Built-in starter motor
